Grizl 5
Off Berry / XL
Sale price
€929,00
Regular price
€1.299,00
Skip to product information
Grizl 5
Sale price
€929,00
Regular price
€1.299,00
Size guide & geometry
| Size | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
| Rider height (cm) | ≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
| Stack (mm) | 550 | 559 | 578 | 596 | 619 | 638 | 660 |
| Reach (mm) | 369 | 380 | 388 | 404 | 420 | 429 | 448 |
| Seat height (mm) | 623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
| Top tube (mm) | 532 | 545 | 559 | 581 | 603 | 618 | 643 |
| Seat tube (mm) | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
| Stand-over height (mm) | 764 | 785 | 810 | 826 | 861 | 883 | 892 |
| Wheel size (") | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
Between two sizes? Choose the smaller for agility, the larger for comfort. Full size guide

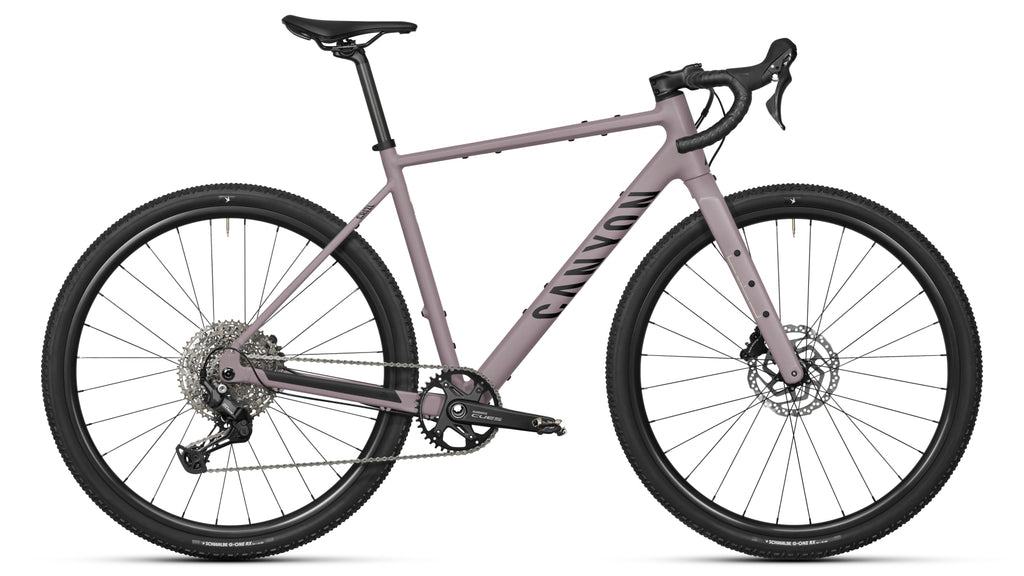

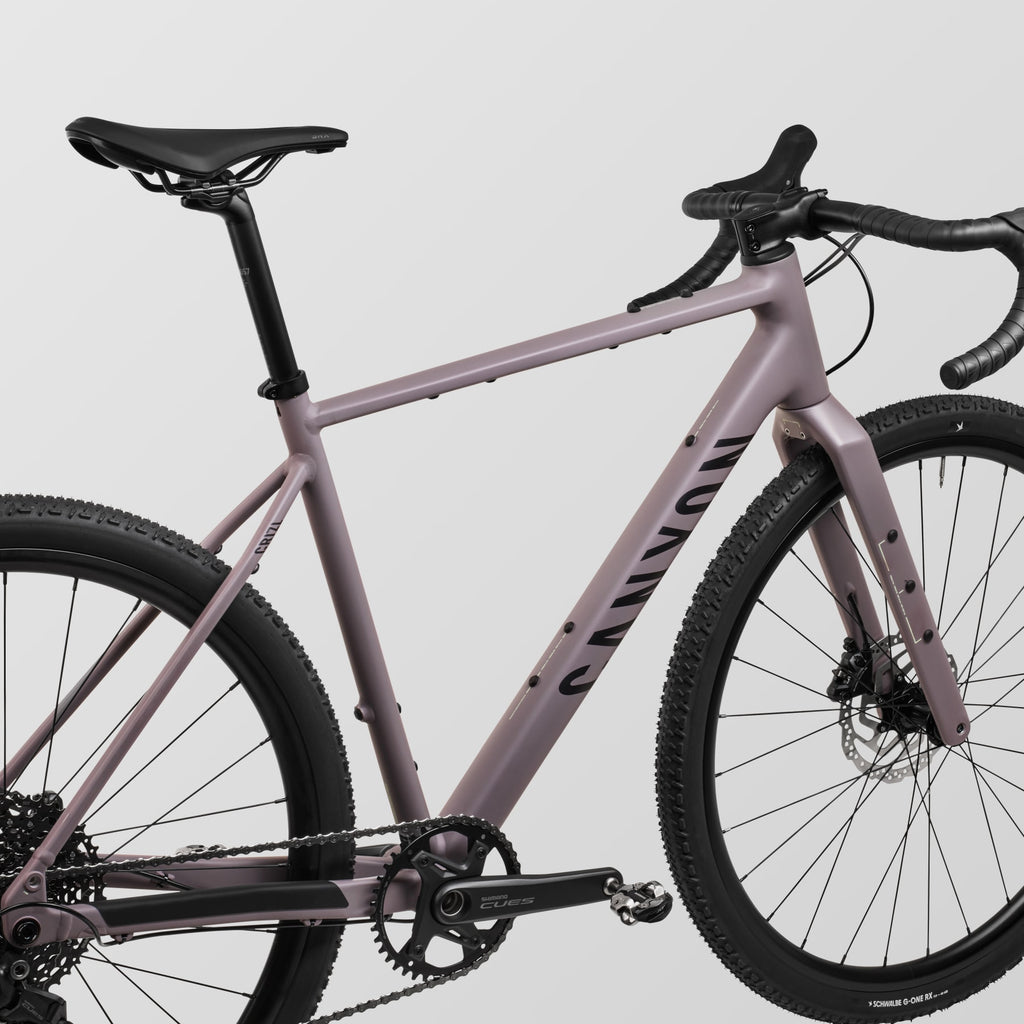

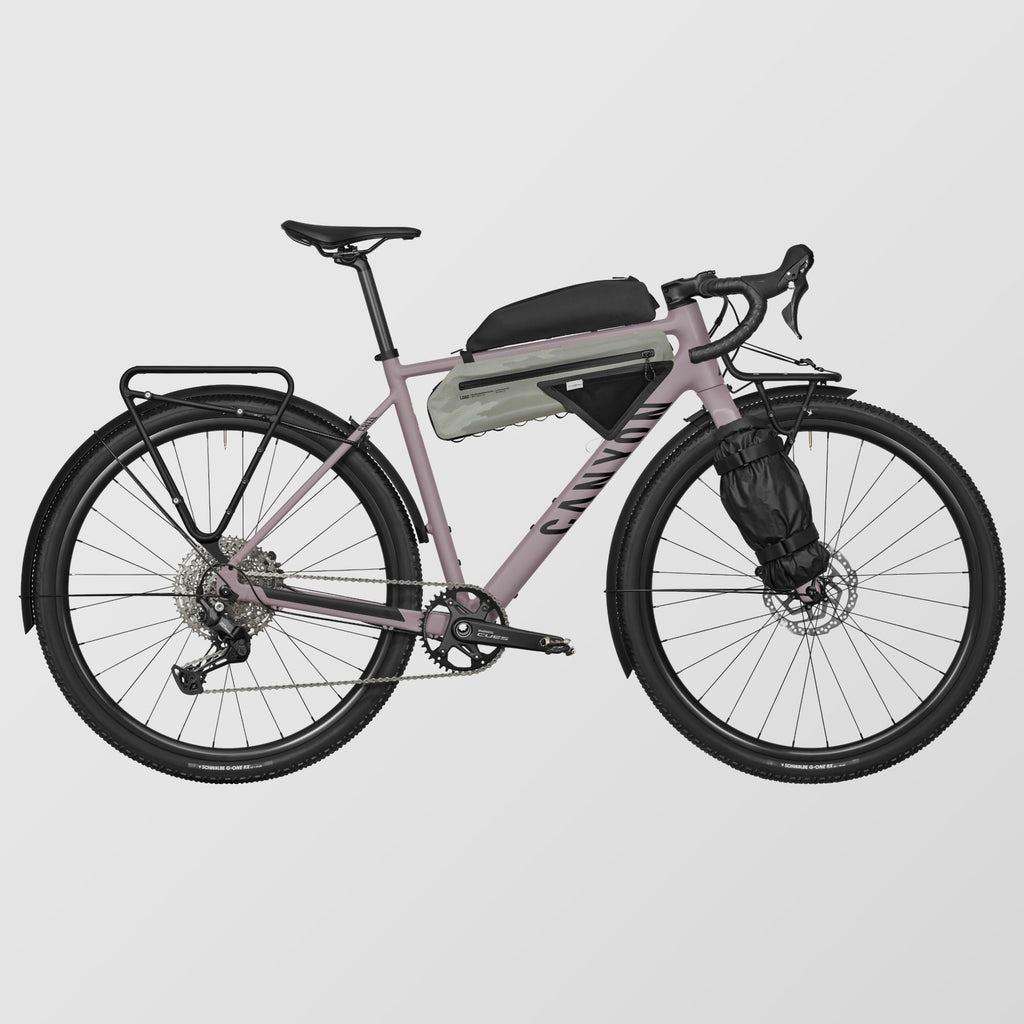

The perfect gateway to gravel riding. Light and strong aluminium frame. Multiple mounts, rack and fender compatible. Wide-range Shimano CUES shifting. Powerful hydraulic disc brakes.
Specifications
- Material: Aluminium (AL)
- Weight: 11.33 kg
- Generation: Adult
- Year: 2027
- Brake Type: Disc brake
- Brake Brand: Shimano
- Number of Chainrings: 1
- Rear Derailleur Brand: Shimano
- Rear Derailleur Type: Mechanical
- Rear Derailleur Model: Shimano CUES
- Wheel Brand: Canyon
- Wheel Material: Aluminium (AL)

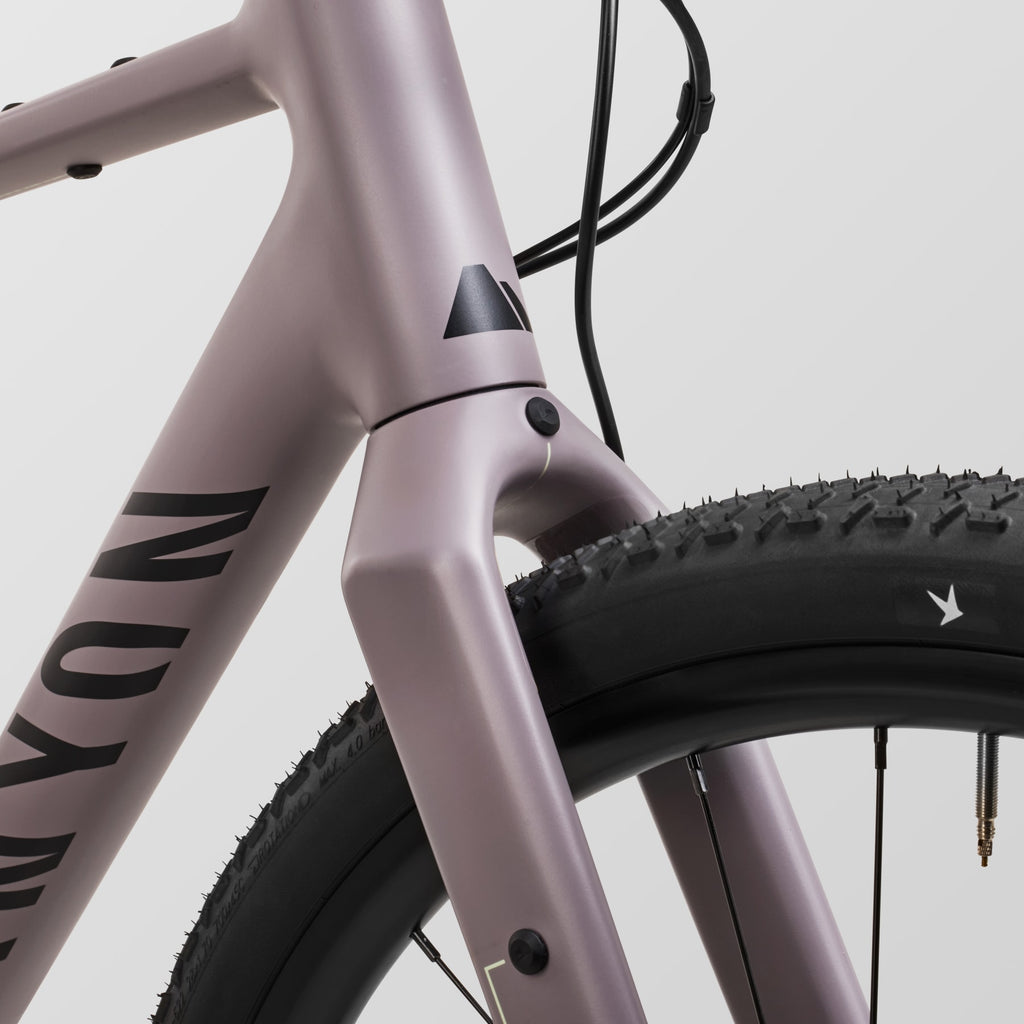

- Frame tyre clearance: 54
- Fork tyre clearance: 54
