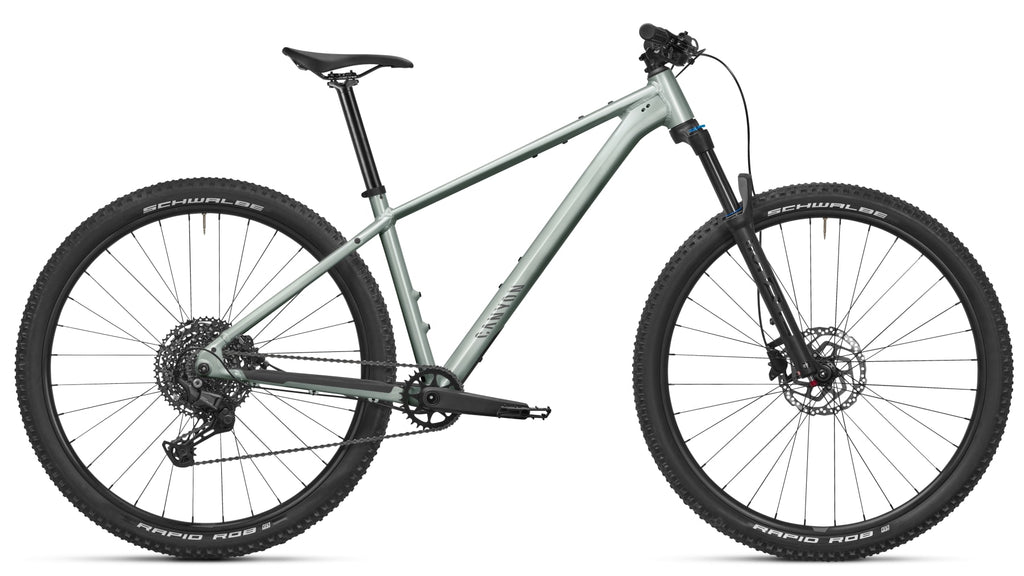

Grand Canyon AL 6
Aloe / XS
Sale price
€569,00
Regular price
€799,00
Skip to product information
Grand Canyon AL 6
Sale price
€569,00
Regular price
€799,00
Size guide & geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider height (cm) | ≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
| Stack (mm) | 587 | 608 | 622 | 640 | 658 |
| Reach (mm) | 410 | 430 | 450 | 470 | 490 |
| Seat height (mm) | 465 - 735 | 548 - 773 | 498 - 818 | 538 - 858 | 578 - 898 |
| Top tube (mm) | 567 | 593 | 617 | 641 | 666 |
| Seat tube (mm) | 387 | 400 | 420 | 460 | 500 |
| Stand-over height (mm) | 746 | 770 | 777 | 784 | 789 |
| Wheel size (") | 27.5 | 29 | 29 | 29 | 29 |
Between two sizes? Choose the smaller for agility, the larger for comfort. Full size guide

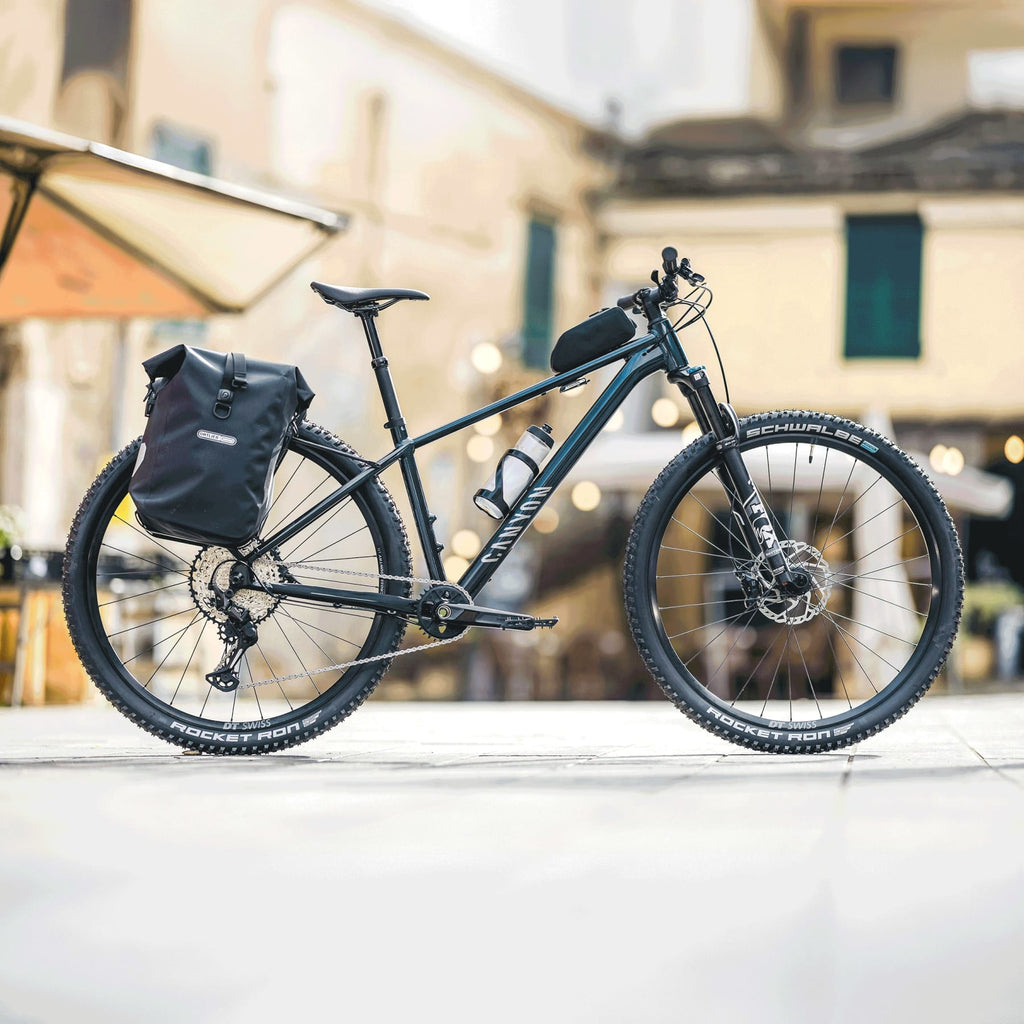

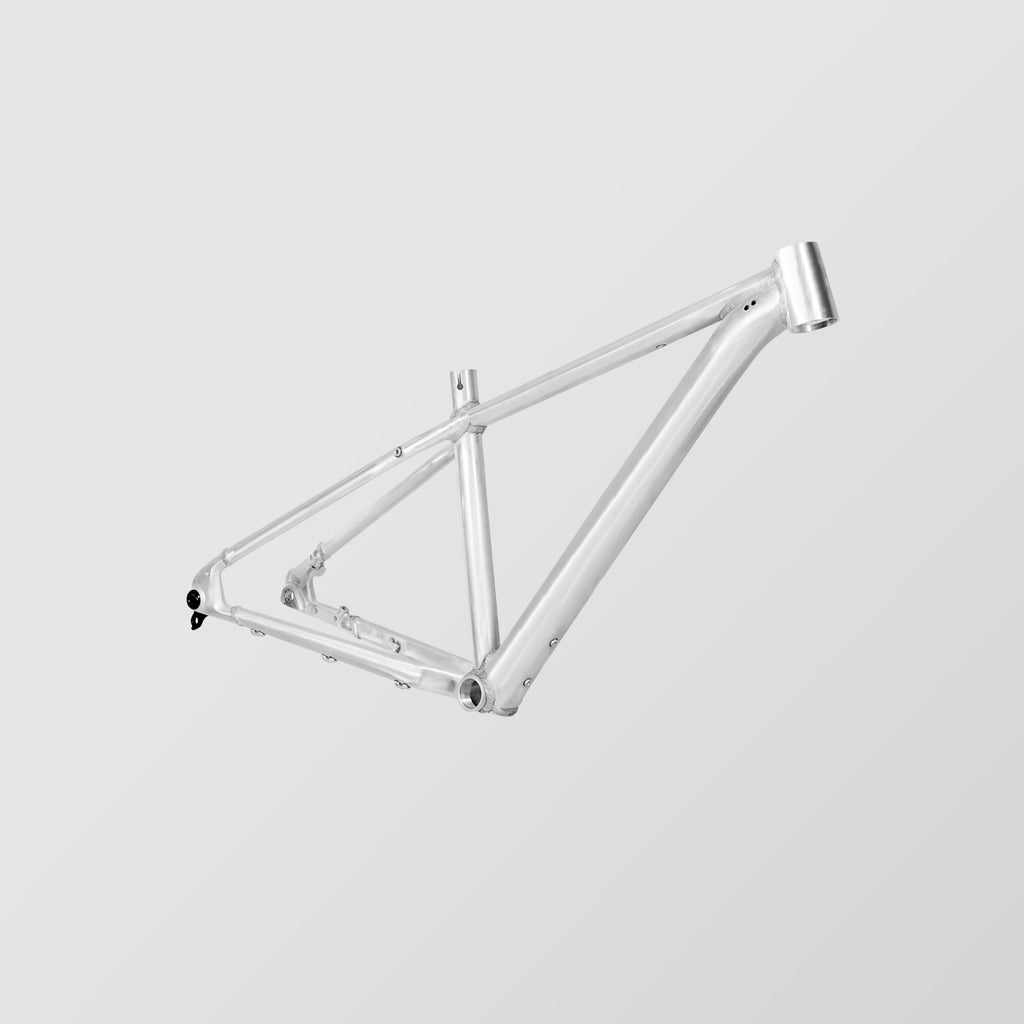

Do-it-all trail hardtail. Lightweight Cat 3 alloy frame. 8 mounting points for racks, bags, bottles, and more. Control-boosting 120 mm RockShox fork. Size-specific geometry – balanced handling for all riders.
Specifications
- Material: Aluminium (AL)
- Weight: 13.88 kg
- Generation: Adult
- Year: 2027
- Brake Type: Disc brake
- Suspension Brand: Suntour
- Brake Brand: Shimano
- Number of Chainrings: 1
- Rear Derailleur Brand: Shimano
- Rear Derailleur Type: Mechanical
- Rear Derailleur Model: Shimano CUES
- Wheel Brand: Canyon
- Wheel Material: Aluminium (AL)
- Frame tyre clearance: 2,40"
- Fork tyre clearance: 2,40"
